The counter nut

CONU - The counter nut

The CONU counter nut is a new and innovative patented 'fastener locking device'. Compared to conventional hex nuts this counter nut offers a wide variety of advantages depending on the application, such as reduced space requirements and flow resistance as well as a lower risk of injury.

FLAT
Due to its unique shape, CONU fits into the countersink without any protrusion. The result: an almost flat and smooth surface.

SAFE
Thanks to its self-locking effect, CONU does not require any additional safety fasteners such as washers or extra nuts. Its grooved conical design prevents ‘self-loosening’. It is easy to install without a secondary tool, and can often be installed one-handed.

STRONG
With its innovative design, CONU can be used with grade 8.8 and 10.9 high tensile screws and bolts.

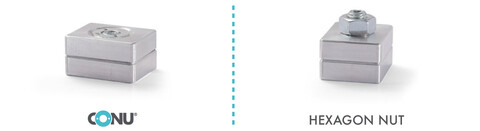

CONU_Kegelmutter_Conu_vs_Sechkantmutter_1100x300_engl

At a glance - The advantages of the CONU counter nut

PRODUCTIVITY

> Quick assembly
> No second tightening tool required
> No additional locking elements (washers nuts etc.) necessary

EFFICIENCY

> Self-locking (for high dynamic loads)
> Suitable for all common materials
> Also suitable for centering purposes

DESIGN

> Product is patented
> Level surface (no protruding nut)
> Optimized variants for maximum load capacity

The possibilities of use

CONU is a reliable and versatile solution to an age-old problem, with many application possibilities and advantages. Due to its easy installation, and the possibility to use it with almost all common materials, the range of applications is endless. Interests in the product could come from many material assembly professions and manufacturing industries.

CONU_Kegelmutter_Einsatzmoeglichkeiten_1100x600_engl

Click "Confirm" to view the video. By doing so, you agree that your data will be transferred to a third-party provider (YouTube). For more information, see our privacy information.

Different versions for different applications

For the launch phase, CONU will be available in sizes M 6 to M 16 and in two different versions:

CONU_Kegelmutter_Ausfuehrungen_S_165x165

CONU-S

Article number: 88888.010.0080.000
CONU-S is used in a countersunk hole with a hole size corresponding to the respective nominal diameter of Form F (according to DIN 74).

CONU_Kegelmutter_Ausfuehrungen_L_165x165

CONU-L

Article number: 88888.014.0080.000
CONU-L, is used when a larger countersunk hole of form F (according to DIN 74) is required.

We are also pleased to offer you the design drawings of the CONU counter nut free of charge.

Download design drawings CONU (zip)

CONU at a glance

In our ePaper on the CONU counter nut, we have compiled all the information for you.

Click here for the ePaper
